BNG Explosion proof flexible conduit
? With oil resistance, acid resistance, corrosion resistance, aging resistance, explosion proof, waterproof, dust proof performance,good flexibility, compact structure, strong connection.
? Flexible pipe length can be customized according to customer requirements.
download
Service hotline：
0523-88317000 88318288
Parameter
-
technical parameter
? According to user requirements, the pipe joint thread can be configured with ISO, G and NPT thread.
? Material: stainless steel 、rubber 、PVC
? Use temperature range: stainless steel braided net sheath flexible connecting pipe -50? C~+50? C
Rubber sheath flexible connecting pipe -20? C~+60? C
PVC sheath flexible connecting pipe +5? C~+40? C
? Zones :1-2-21-22
? MarkingII 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP66 -

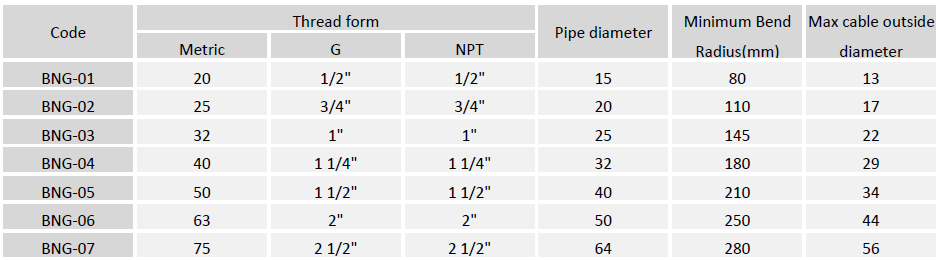

Selection table
-

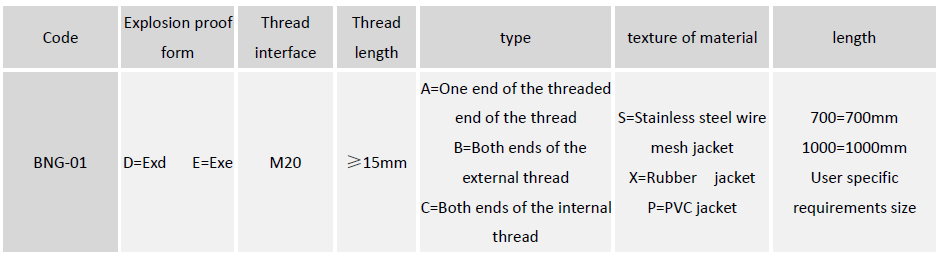

Ordering information
Parts
|
