The enclosures EJE*-R are normally installed in the industrial plants, with potential hazardous atmospheres of gases and combustible dusts, and therefore classified as Zone 1 – 2 – 21 – 22.These enclosures are primarily used with the function of:
Derivation and/or cables collecting from the field and to the control rooms, for analogic signals and/or digital signals end/or measure signals what thermocouples, signals 4 ÷ 20 mA etc. etc.
Clearing barrier signals and/or of transposition signals from field to control room what Fild-Bus; Mod-Bus and Profi-Bus.
Control and start-stop of apparatus as motors, fans, pumps etc. etc.
Reading of physical greatness which flow, level, pressure, temperature,current, voltage, frequency, speed control etc. etc.
Offering customers a great combination of possibilities and flexibility.
Service hotline：
0523-88317000 88318288
-

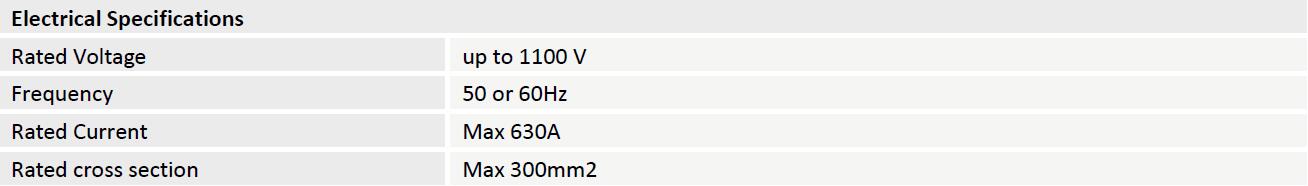

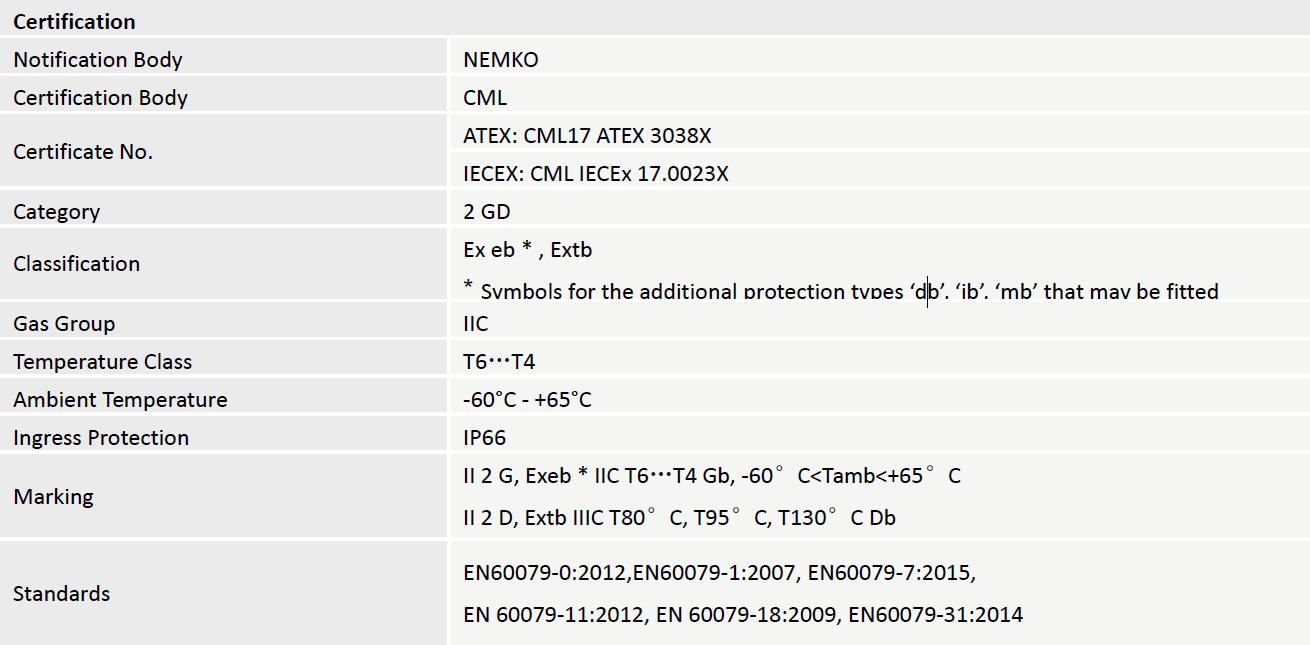

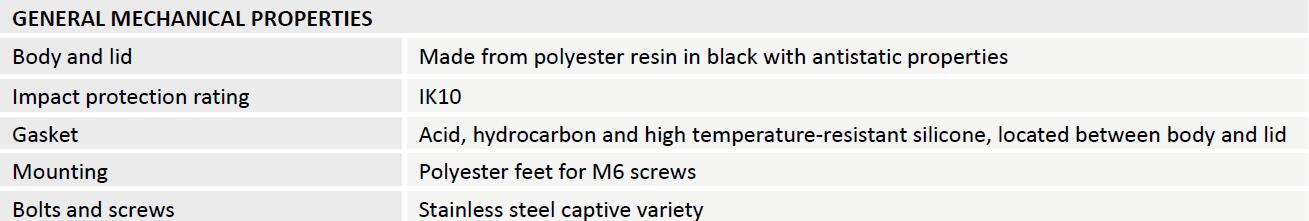

Technical Parameter
depending on type of terminal and explosions-proof components used.
Accessories and special execution on request
? Special hardware in stainless steel AISI 316 A4
? Out of standard thread
? Set of nut and basket for restoration of the IP66 degree of protection(only for metric holes).
? ANSI B.20.1 NPT or UNI EN 10226-2 Conic Gas adapters with Metric or vice versa.
? Unified joining flange for various enclosures, inclusive of gaskets for IP 66 degree of protection and stainless.
steel Inox AISI 304 fixing screws.
? Galvanized steel internal plate.
? Insulation material internal plate.
? Passing earthing bolt.
? Hinges.
Thread and hubs
?IISO 261/ISO 965 Metric thread
?Passing holes, suitable for ISO 261/ISO 965 Metric thread -
Overall dimensions of the GRP enclosures series EJE*-R
-

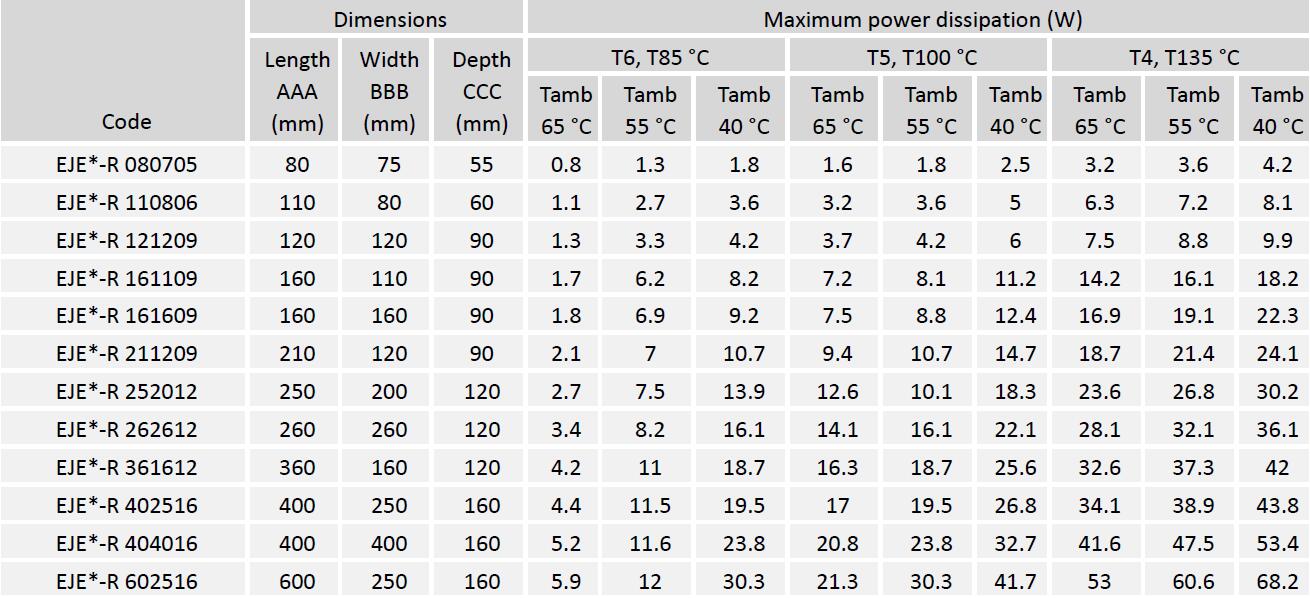

EJE*-R enclosure sizes and maximum power dissipations
The junction boxes & control stations may also be manufactured to intermediate sizes. This assumes that anygiven dimension is not larger than the respective dimension of the largest enclosure or smaller than therespective dimension of the smallest enclosure. The power rating applied to a junction box of intermediate size isthat of the next smallest enclosure.
The terminal and components may be used in specified combinations subject to the calculation of maximumdissipated power and the conditions of certification listed. The maximum dissipated powerfor each enclosure isdetailed above.
The enclosures can be drilled and taped with the maximum size and maximum number of holes asspecified in themanufacturer documents for the use with separately certified cable glands or blanking plugs. Each enclosure isprovided with an internal earthing certified terminal or earthing point. Metal enclosures are provided with anexternal earthing point.
The enclosures EJE*-R series have modular dimensions and can be jointed together through a flange thatcontinies to grant the IP protection. With such system we’re able to increase the internal volume available forelectrical installation so to reach the sole space reallly needed.
-

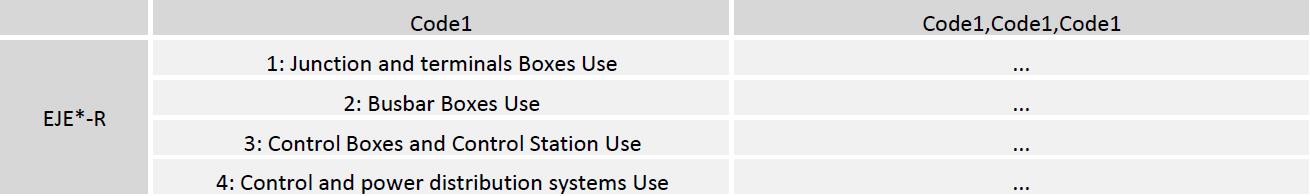

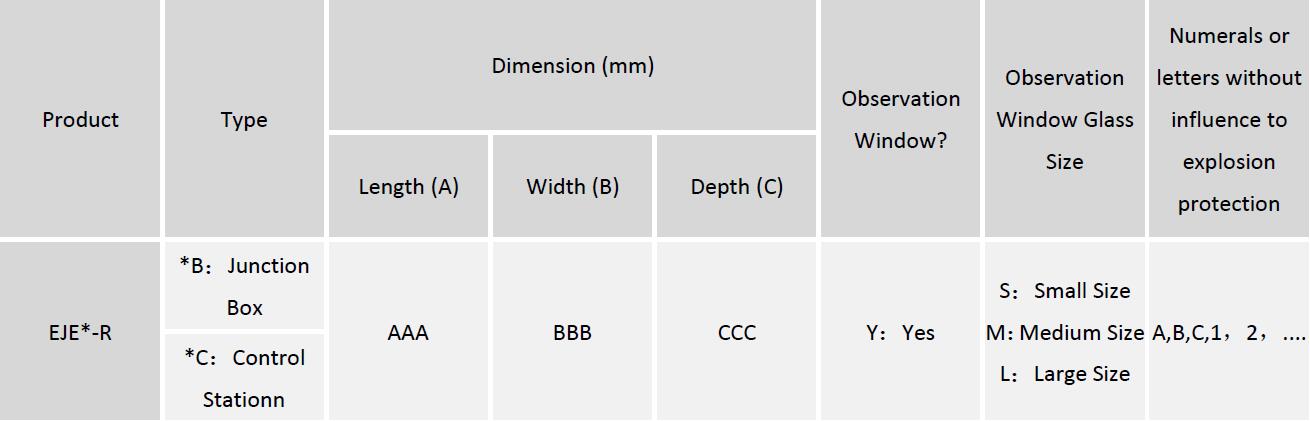

Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
Numerals or letters without influence to explosion protection
|
