location:Home>Products>Station&Junction Box> DWEX01 series command and control components
product

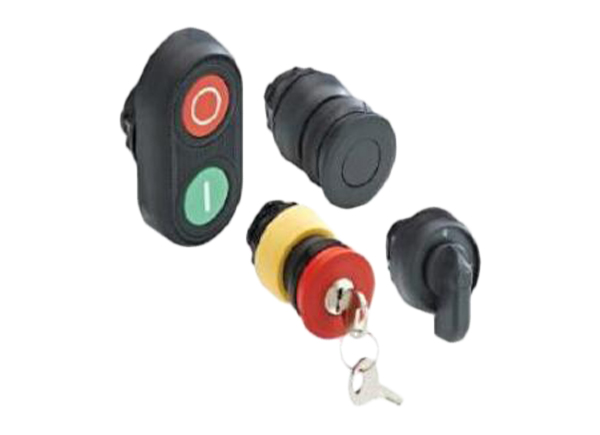

DWEX01 series command and control components

The DW01 series switch module is used in almost all hazardous areaswhere machine functions are activated by means of a button or a switch.The DW01 flex is flexible and in addition to a large number of actuatingelements it offers a junction box to facilitate a safe and convenientinstallation of the module into a control panel. All contacts in the switchmodules are self-cleaning and the opening contacts have positive openingoperation. The conductors are connected by means of terminals on theback of the module which have an increased safety level. The easyinstallation of the actuating elements without tools ensures conformanceto the high IP degree of protection.

A large number of variants and versions of actuating elements areavailable for the DW01 series control and indicator units. All actuatingelements are made of high-quality thermoplastic and conform to the IP 66type of protection.

To complete the actuating elements, there are useful accessories such as e.g. label holders, marking tags, metal shroud or nut wrench. Actuatingelements for increased resistance to oil are available too.

The actuating elements are mounted quickly and easily onto the DW01series control and indicating devices. Use in Zone 1 and 21 is certified.

Possible Application
? Control Panels
? Local control stations


download

Service hotline:
0523-88317000 88318288

Parameter

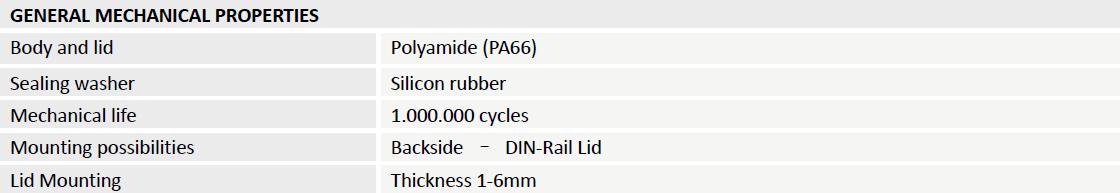

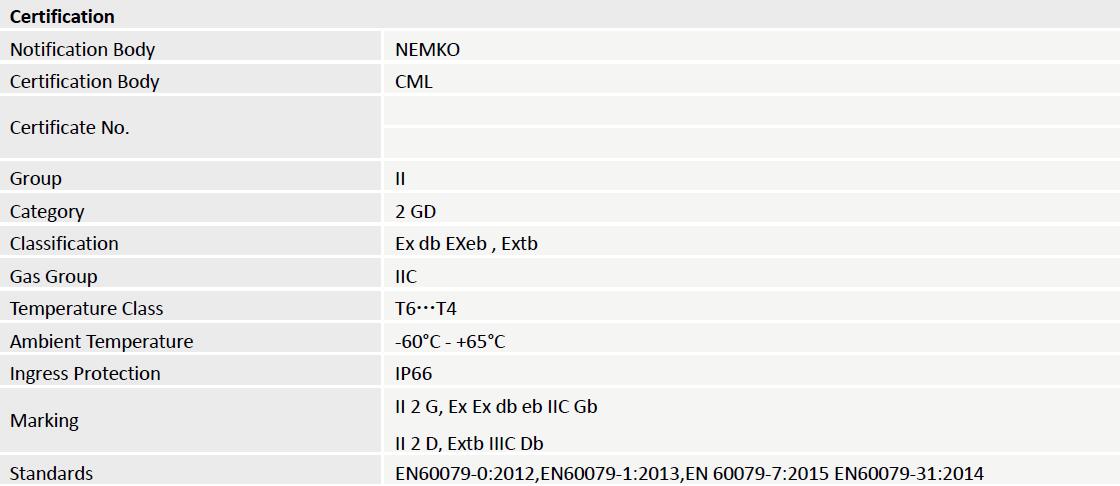

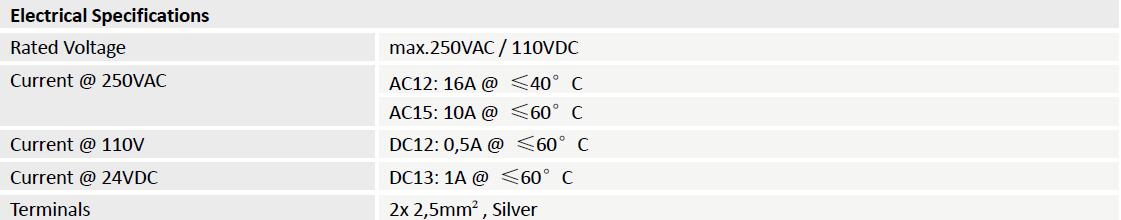

  • Technical Parameter

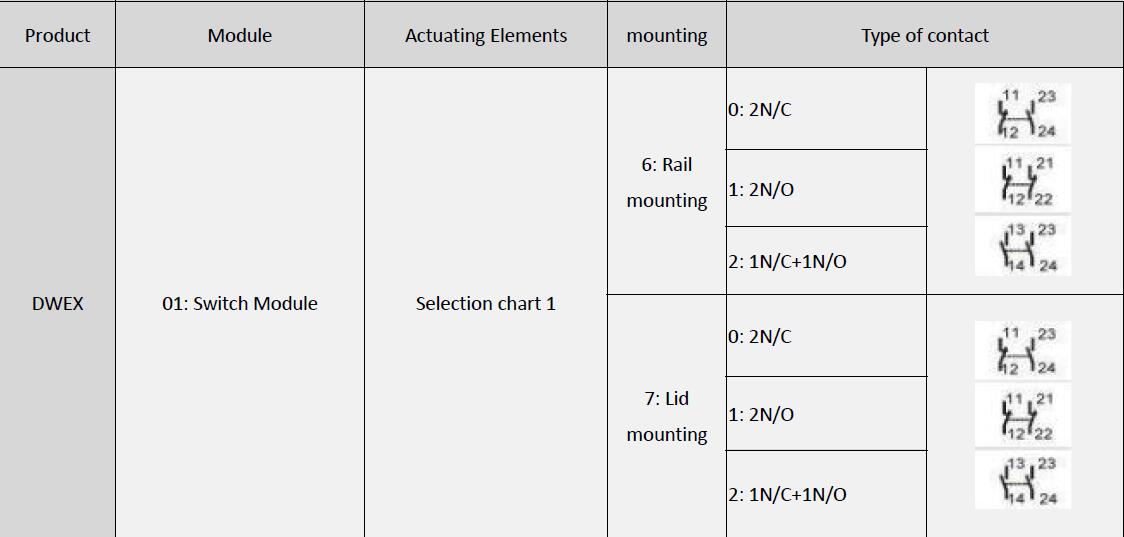

  • Order Specifications Table

    Please refer to the below table for ordering. If you need more information, please contact our sales representativefor assistance.

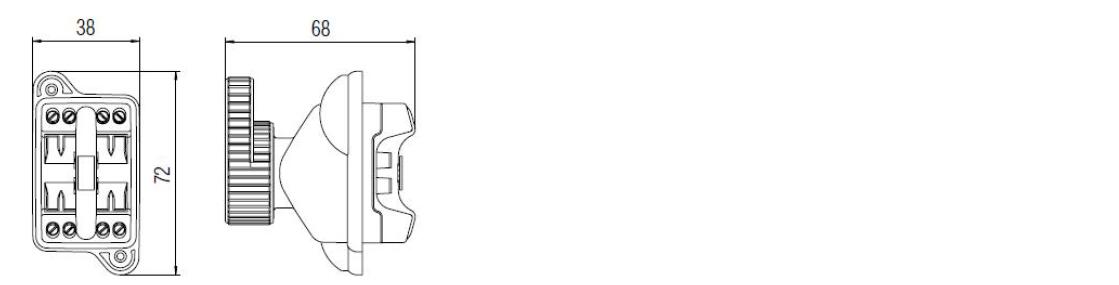

    Switch Module Dimensions

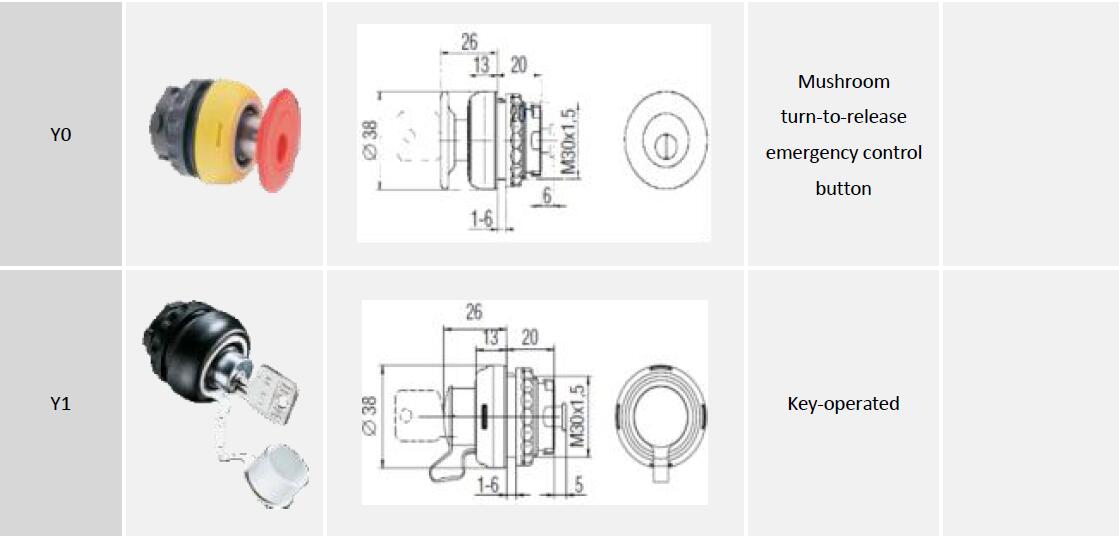

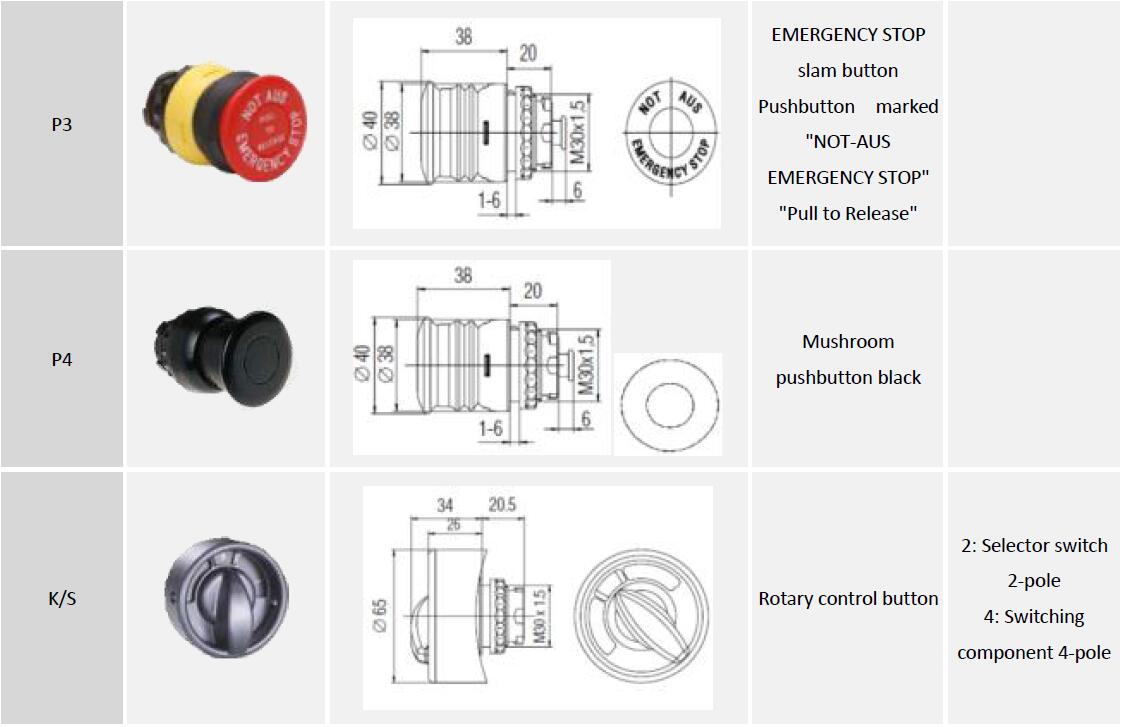

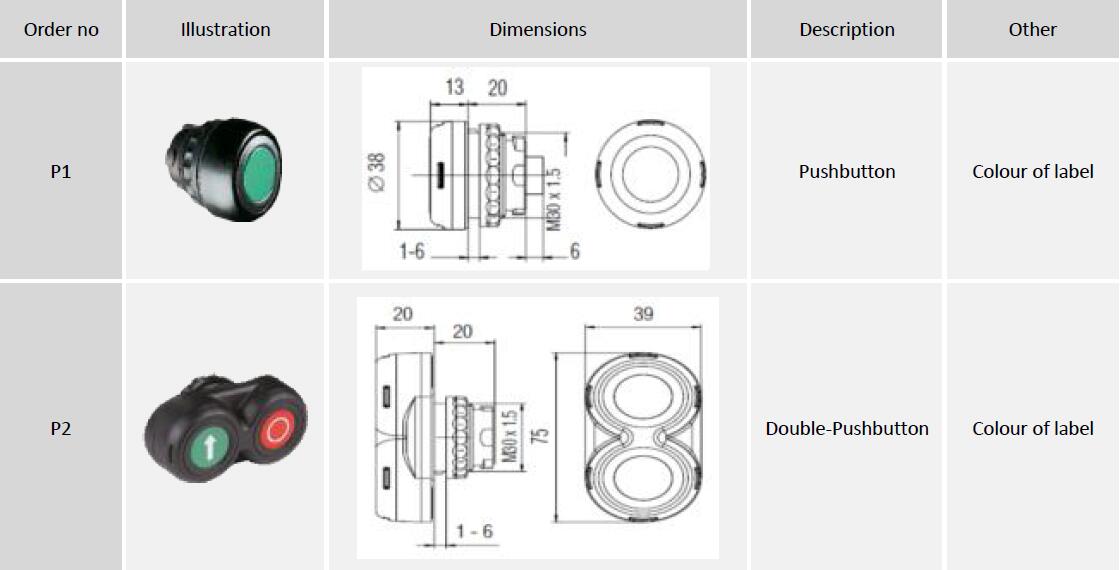

  • DW01 Actuating elements

    Selection chart

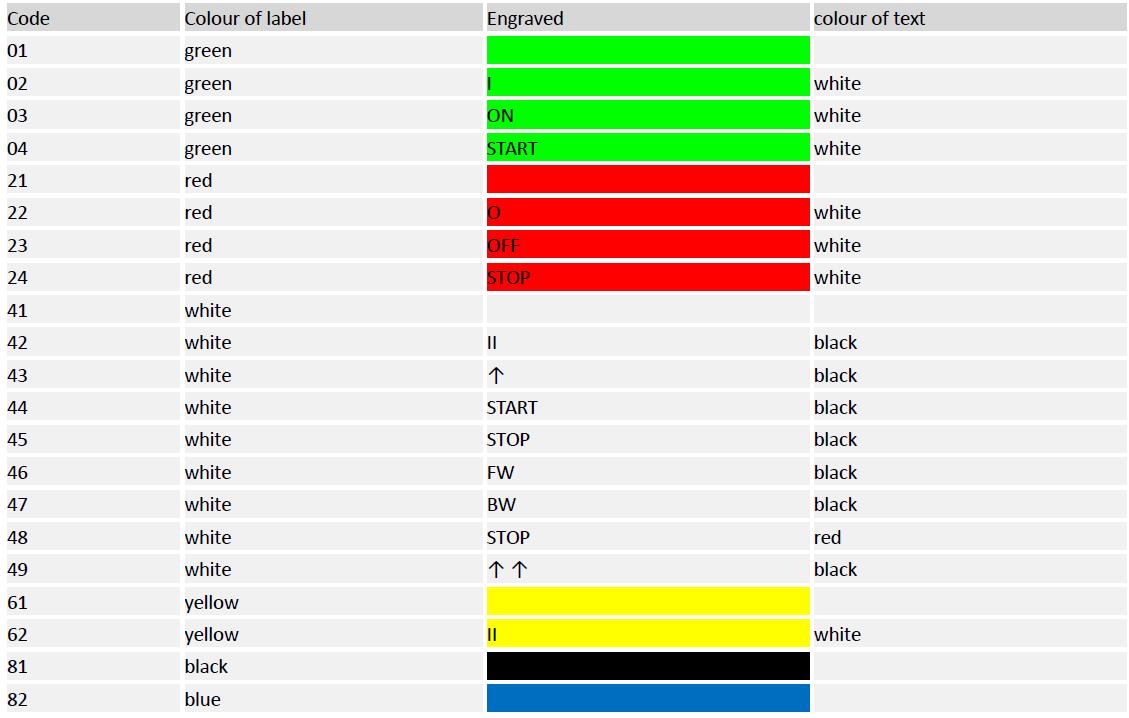

    Following inlay symbols and colours are available. Please add the code on your order.
Parts

Please write what you need, we will contact you asap!
Give technical advice within 30 minutes | Provide program design within 24 hours | Send domestic / foreign engineers within 24/72 hours
