Outdoor or indoor use.
For use with single wire armour ‘W’, wire braid ‘X’ and steel tapearmour ‘Z’elastomer and plastic insulated cables.
For particular use with:-
（ a）Cable inner sheaths that are not effectively filled, compact and/orcircular, have tape bedding or have hygroscopic fillers.
（ b）Cables that exhibit ‘cold flow’ characteristics.
（ c）Enclosures containing an ignition source in gas group IIC areas orcontaining an ignition source in a Zone 1 area.

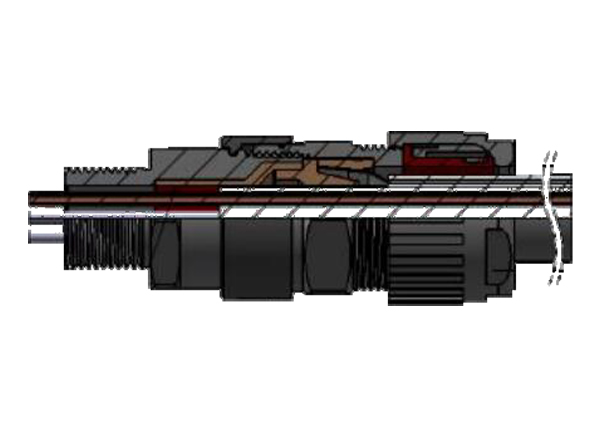

Provides a barrier seal between the individual insulated coreswithin the cable and prevents entry of the products of an explosion into the cable.
Provides armour clamping, using one clamping arrangementfor all armour/braidtypes.
Provides an outer deluge seal to prevent moisture ingress to the cablearmour/braid.
Provides a cable retention and low smoke and fume, zero halogen seal onto thecables outer sheath.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Deluge Protection to DTS01.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking:II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68 -

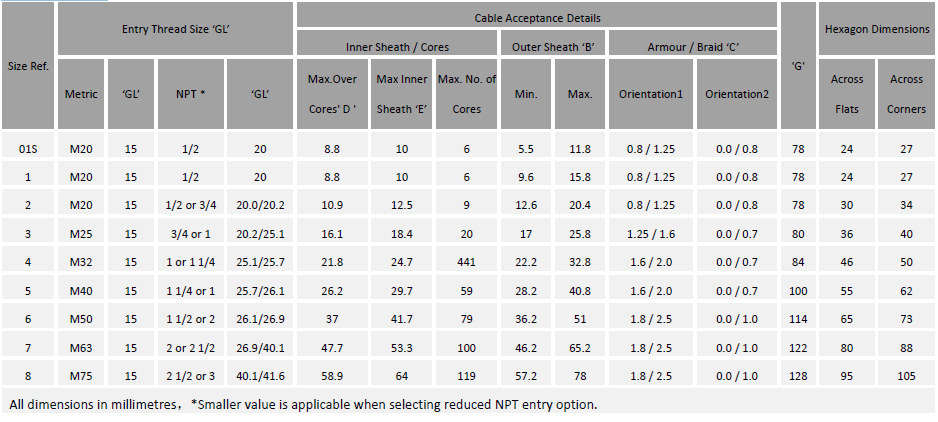

Selection table
-

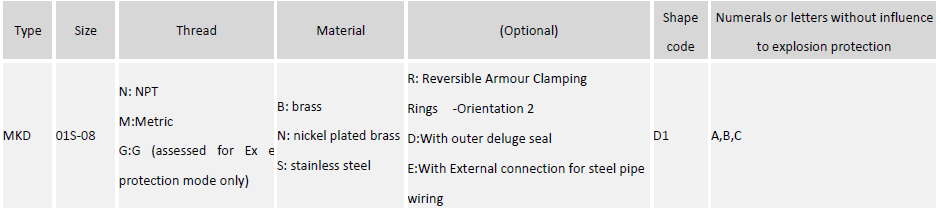

Ordering information
|
