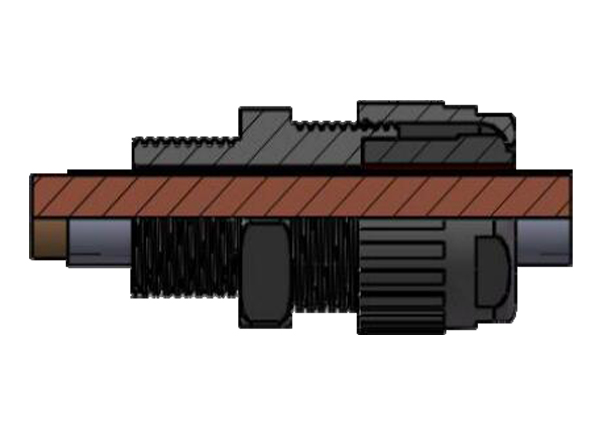

MKD-D7 Series EX e Non Armoured Cable
Outdoor or indoor use.
Suitable for the following cable types-
(a)Non-armoured cable;
(b)Marine shipboard cable Type P cable.
Sealing Area : Cable Outer Sheath - Single Compression.
download
Service hotline：
0523-88317000 88318288
Parameter
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Deluge Protection to DTS01.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking:
II 2 GD
Ex e IIC Gb Ex tb IIIC Db IP68 -

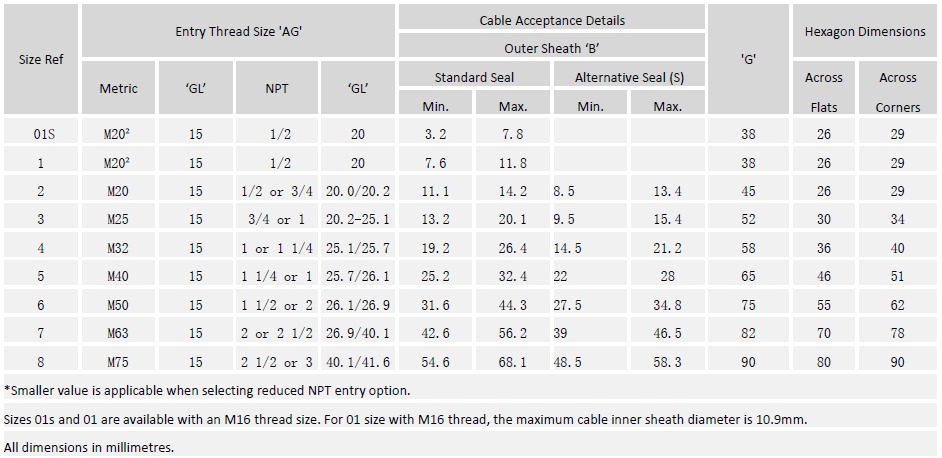

Selection table
-

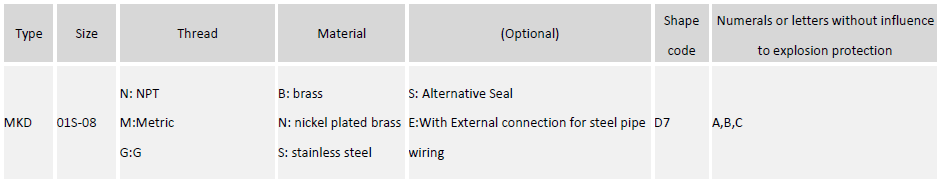

Ordering information
Parts
|
