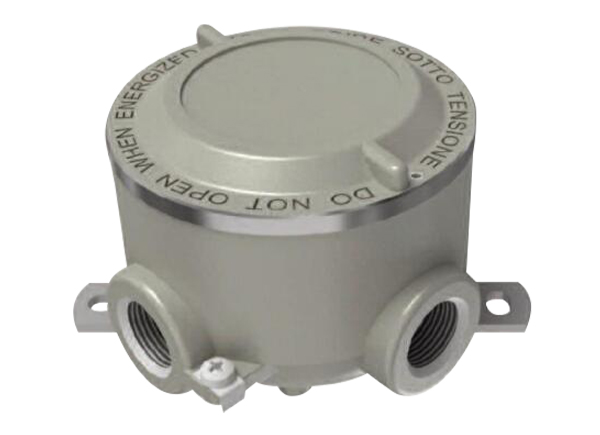

BJX Series Junction Box
The junction boxes BJX series are normally used to containterminal blocks and they are recommended for routing andinterconnecting the wires at the intersection of the conduits. Thewide range offered serve to meet the specific requirementsindicated by the custumer. They can be installed in areas classifiedas 1, 2, 21, 22 zones. The construction characteristics of the BJXseries boxes make them suitable for ambient temperature:-50 °C and + 65 °C.
It’s been widely used for wiring and distributing of variouselectricalequipments and connecting pipelines in chemicalworkshop, warehouse,refueling station, oil drilling platform, oilexploration and refining areas, etc.
download
Service hotline：
0523-88317000 88318288
Parameter
-

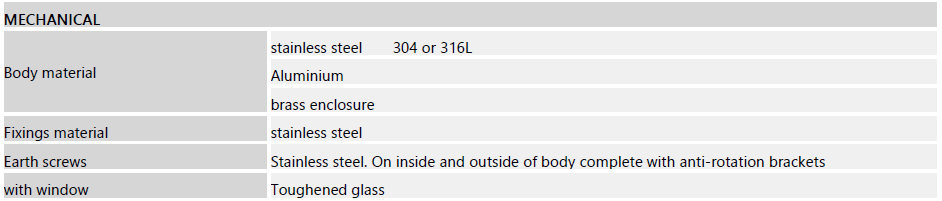

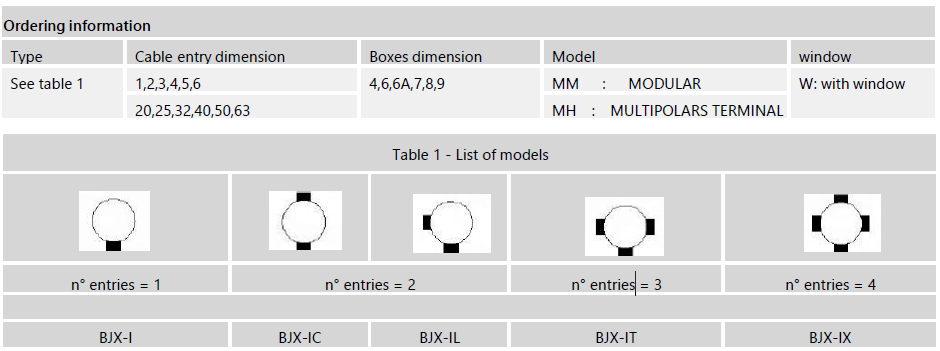

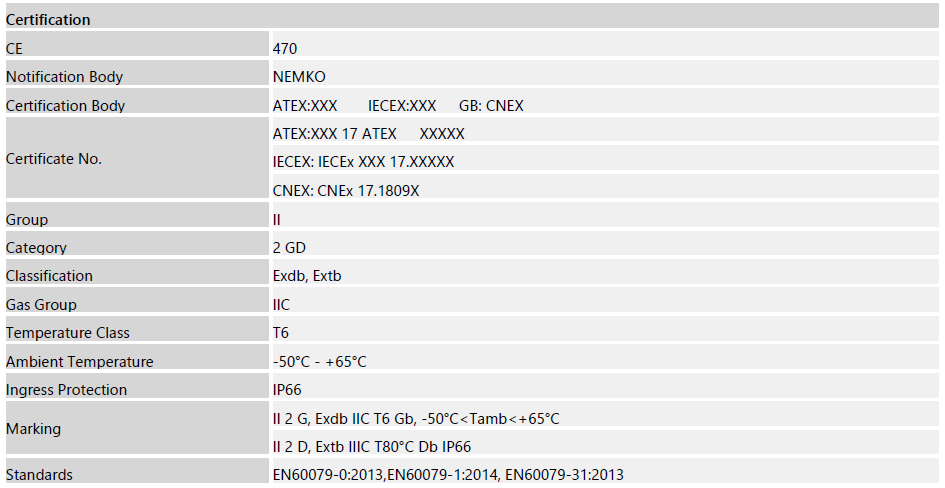

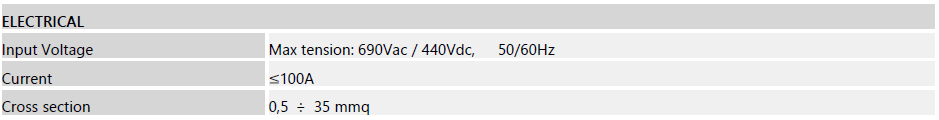

Specifications
-

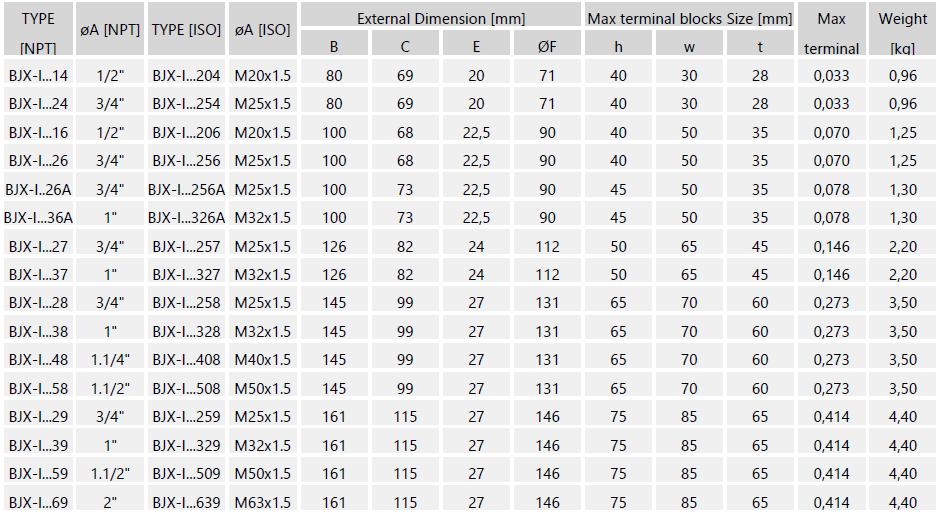

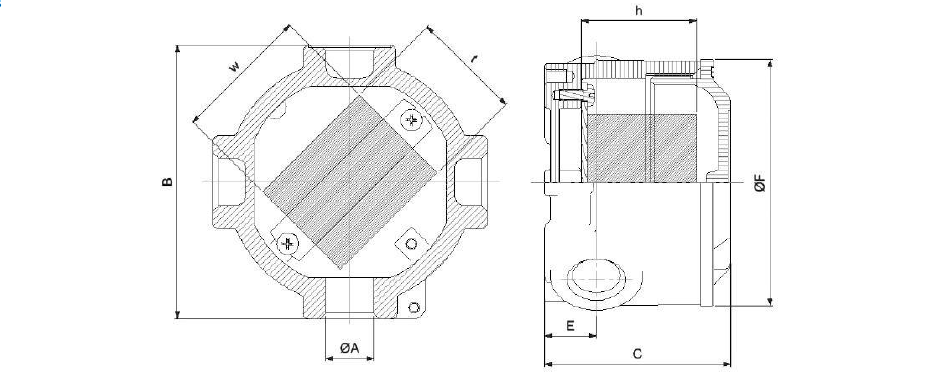

Dimensions
Parts
|
