location:Home>Products>Explosion proof fittings> DWBGJ Series explosion-proof adapter
product

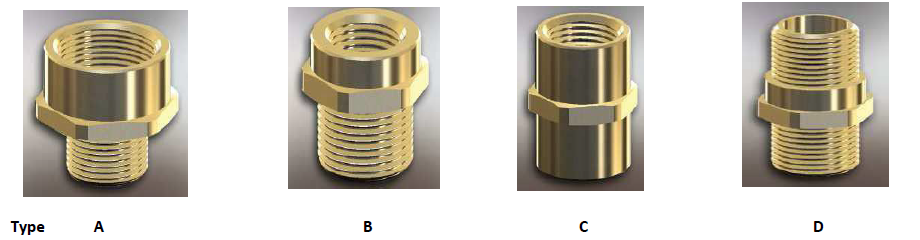

DWBGJ Series explosion-proof adapter

Used for thread conversion

Wide range of thread types & sizes

General purpose / industrial version available

Equipment interface ‘O’ ring seal available

download

Service hotline:
0523-88317000 88318288

Parameter
  • Technical Data

    ? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
    ? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
    ? Ingress Protection: IP66, IP67 and IP 68.
    ? Operating Temperature Range: -60°C to +140°C.
    ? Material: brass, nickel plated brass or stainless steel 304、316L.
    ? Ex-marking: II 2 GDEx d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68

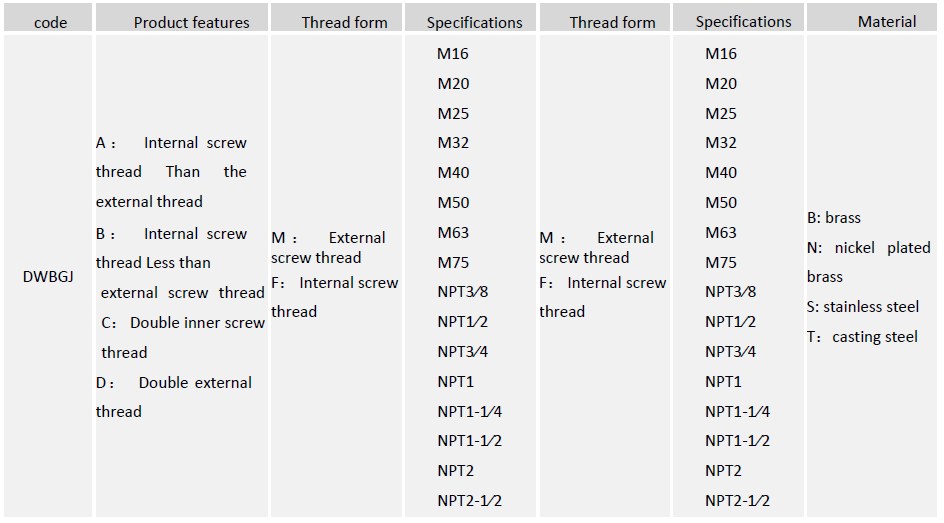

  • Ordering information

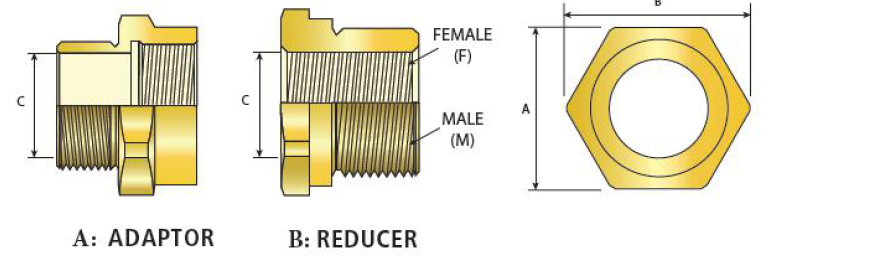

  • Drawings

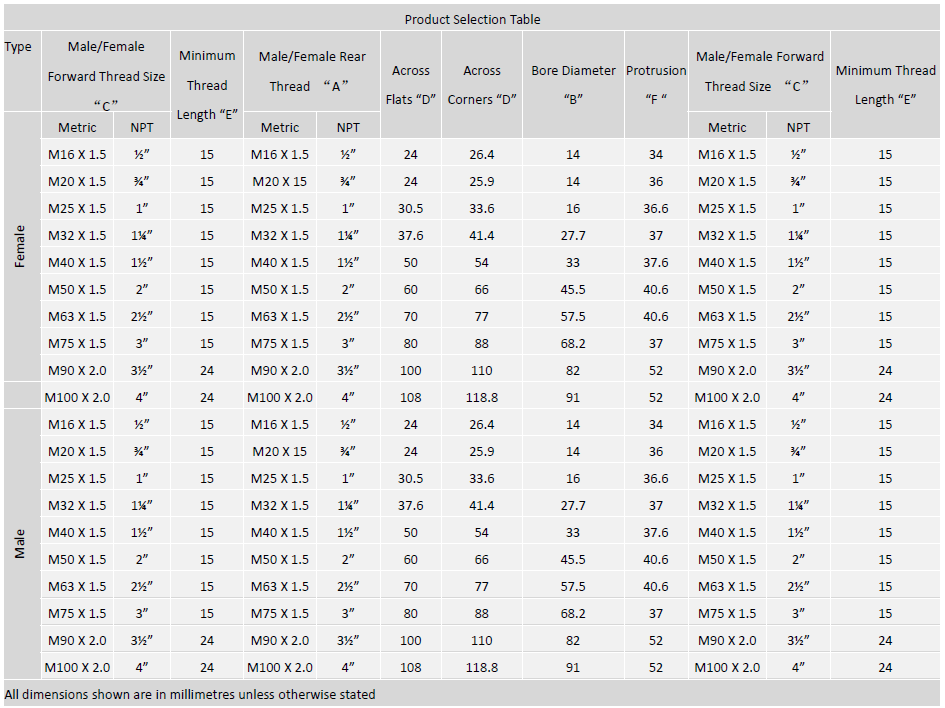

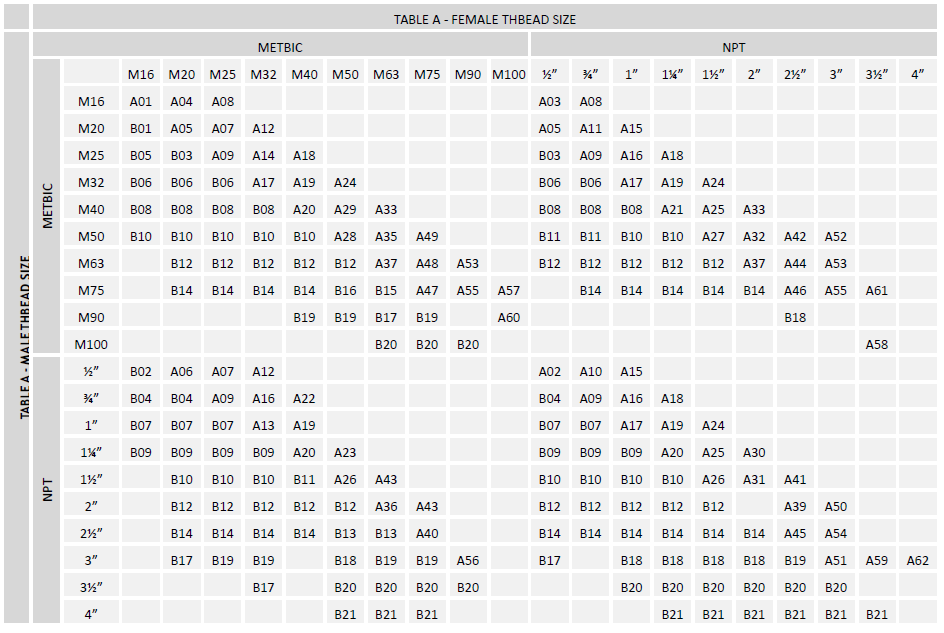

    Select male thread from the left hand column of Table ‘A’
    Select the female thread size from the top of Table ‘A’, referenced ‘A**’ for Adaptor and ‘B**’ for Reducer

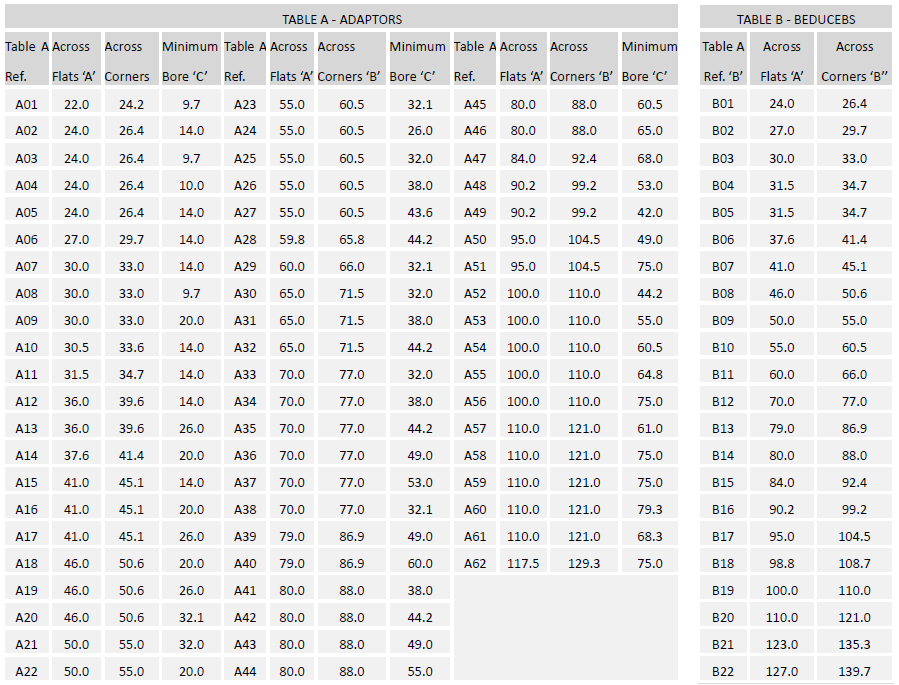

    Using this code reference, please refer to the corresponding dimensions in Table ‘B’

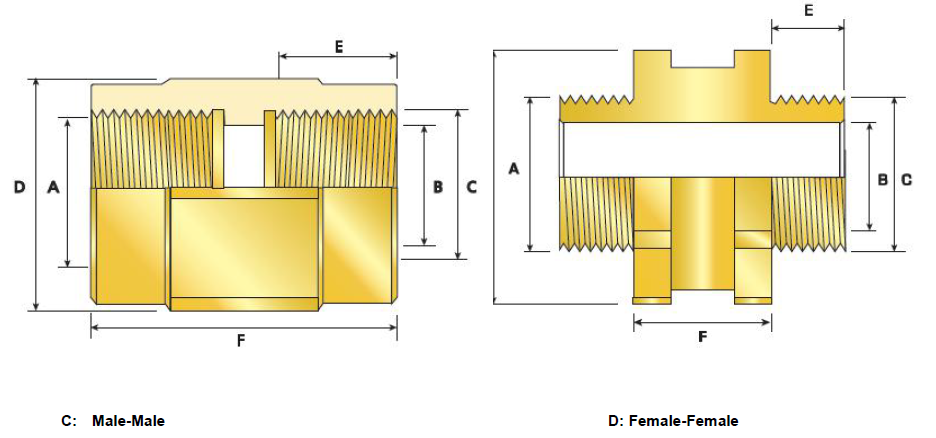

  • Male-Male & Female-Female


Parts

Please write what you need, we will contact you asap!
Give technical advice within 30 minutes | Provide program design within 24 hours | Send domestic / foreign engineers within 24/72 hours
