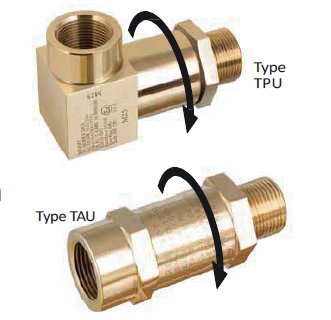

DWTAU / TPU Series In-line and 90 degree swivel adaptors
Protects cables from excessive bending stress
General purpose / industrial version available
Supplied with male or female threads
Can be supplied with thread conversion
Equipment interface ‘O’ ring seal available
download
Service hotline：
0523-88317000 88318288
Parameter
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and
IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68.
? Operating Temperature Range: -60°C to +140°C.
? Material: brass, nickel plated brass or stainless steel 304、316L.
? Ex-marking: II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68 -

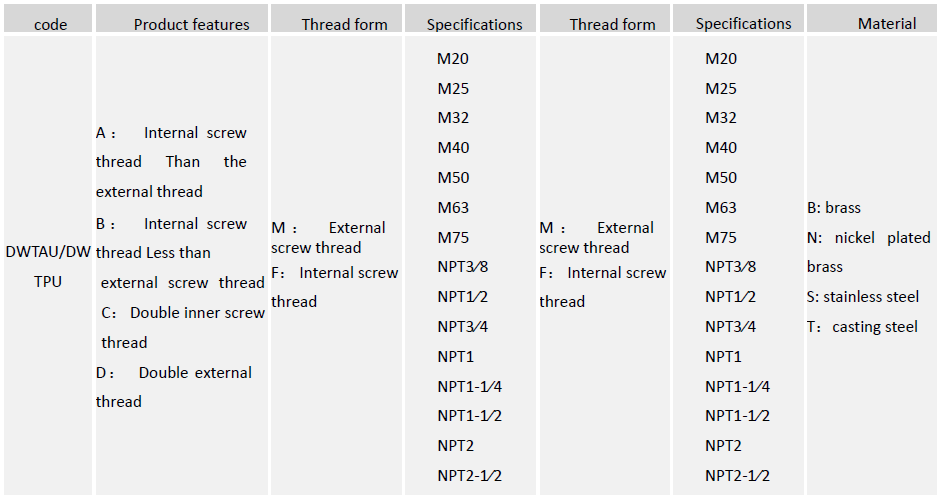

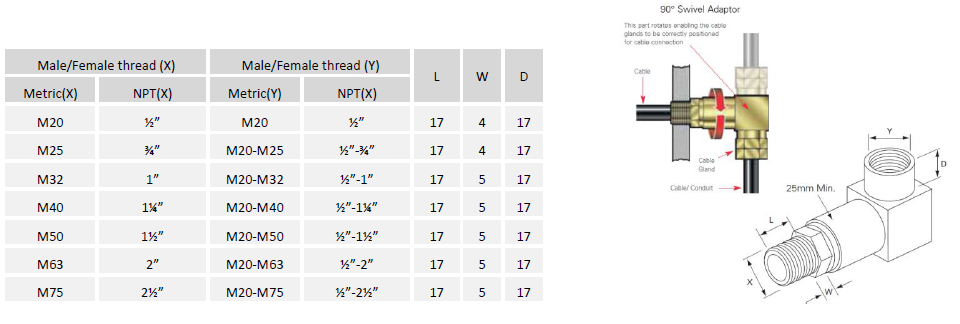

Selection table
-
Ordering information
Parts
|
